Attribute Extractor

How to Use?

System Requirements:

OS:Compatible with XP, Vista, Win7, Win8
RAM: 1024MB or greater, executable program takes 27Mb, loaded with a drawing file will take more RAM depends on the size of drawing file.
HD: 40MB free hard drive spaces to install

Attribute Extractor

AutoDWG Attribute Extractor is for batch extracting of attribute data from AutoCAD attribute blocks without running AutoCAD. Most DWG formats are supported including AutoCAD R9 – 2019.

Steps to do the conversion

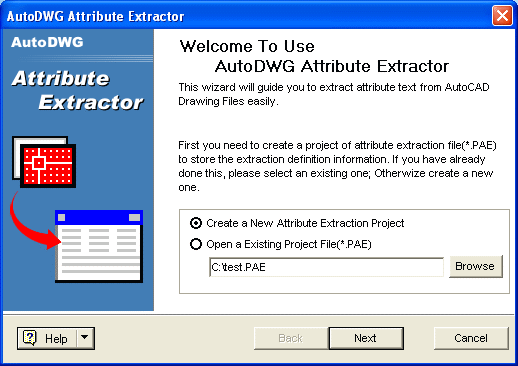

Step 1: Please double click the desktop shortcut to open the program, and create or open a attribute extraction project

Attribute-extractor-step1

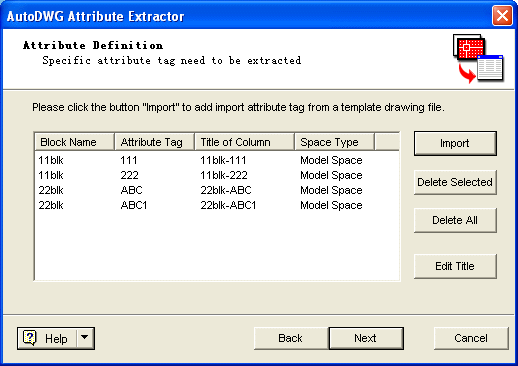

Step 2: Define the attribute tag to be extracted

Attribute-extractor-step2

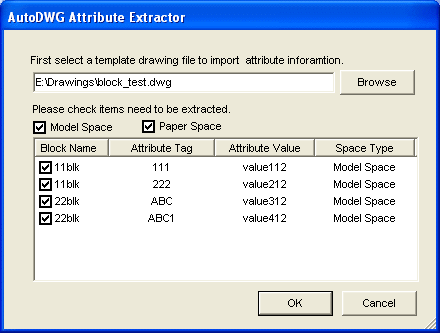

To make it easy, you can select attribute tags from an existing template drawing file, click button "Import".

Attribute-extractor-stpe2-template

First select a template drawing file, AutoDWG Attribute Extractor will enumerate all blocks and attribute tags in the drawing. Check the block name and the attribute tags, press OK, all attribute tags you select will be listed in the Wizard.

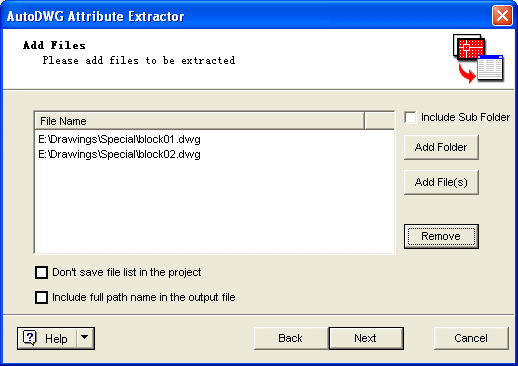

Step 3: Add DWG/DXF Files to be extracted

Attribute-extractor-step3

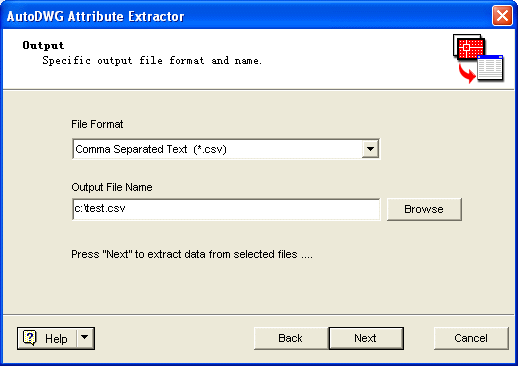

Step 4: Specify the output format and file name, then click the “Next” button to extract attribute.

Attribute-extractor-step4
