How to Use?

System Requirements:

OS:Compatible with XP, Vista, Win7, Win8
RAM: 1024MB or greater, executable program takes 27Mb, loaded with a drawing file will take more RAM depends on the size of drawing file.
HD: 40MB free hard drive spaces to install

DWG to Image Converter

AutoDWG DWG to Image Converter batch converts DWG, DXF and DWF to JPG (JPEG), TIFF (TIF), GIF, PNG, BMP, WMF and EMF without AutoCAD.

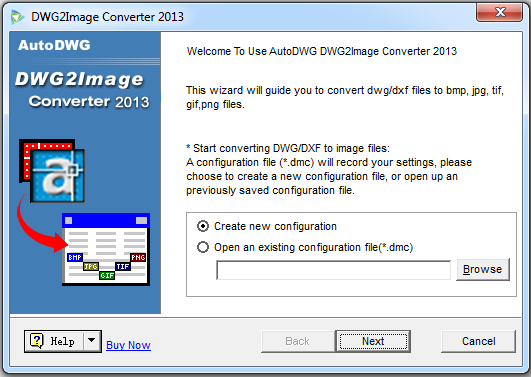

To begin with, choose a configuration file to open or use default settings, then click Next.

DWG2Iamge-screenshot

  • What is configuration file?
  • The configuration file (*.dmc) is to save user settings for the AutoDWG converter.

  • How does it save the configuration file?
    Please notice the pop-up window when exiting the converter after conversion, click “Yes” and choose the location to save the configuration file.

Step 1 Browse and select the drawing(s) to convert:

DWG2Iamge-step1

  • Batch conversion and single file conversion
  • Batch mode is default, tip “include subdirectory” if you also need to convert files in subdirectory.
    Click “I only want to convert a single file” when you want a single file converted.

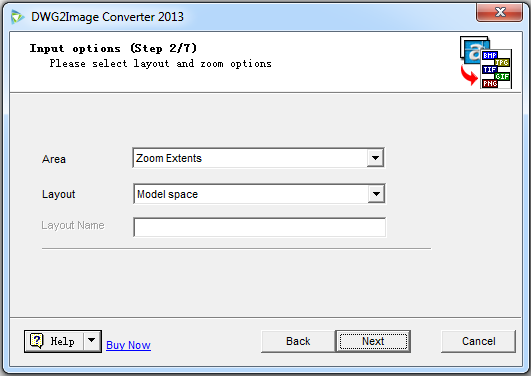

Step 2 Select layout and area, and click "Next":

DWG2Iamge-step2

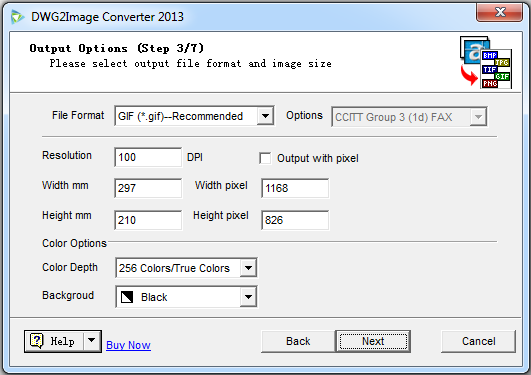

Step 3 Select output file format, and set resolution for area or click "output with pixel"

DWG2Iamge-step3

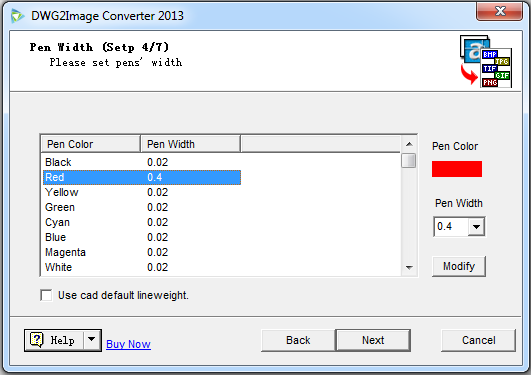

Step 4 Customize the pen width or use default settings.

DWG2Iamge-step4

Step 5 Set up SHX as you wish.

DWG2Iamge-step5

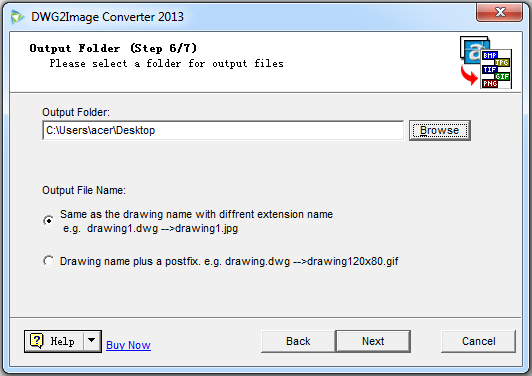

Step 6 Browse and select out put file folder.

DWG2Iamge-step6

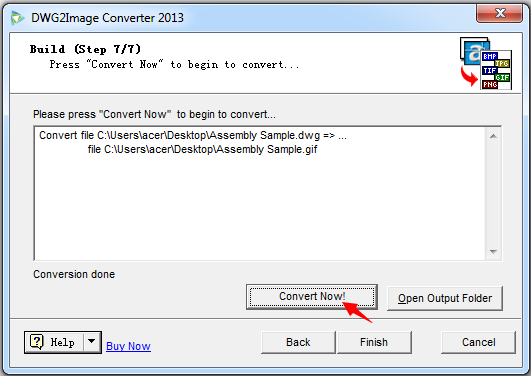

Step 7 Click the button "Convert Now", to finish the conversion.

DWG2Iamge-step7

FAQ:


     I didn't get a registration code, so what do I do now?
     Do AutoDWG products work on Windows 8 and 10?
     Are your program compatible with AutoCAD 2017?
     dll registration failed, how to fix it?
     Will this software work with 64 bit computer?


     Do you offer customized service?


     Why does the program stop unexpectedly?
     How to update the product?
     How to download the old program?


     How do I complete activation or registration?
     What shall I do, if the registration code is invalid?
     How do I retrieve the registration code of the latest version for reinstall?
     How do I get a new registration code with my upgrade?
     What to do if I fail to download/install the product on PC?
     How to transfer my license to a new PC?
     How to uninstall your program?
     Do I need to buy an additional seat to use this both at home and at work?


     What is your policy on refunds?
     What is your policy on Licenses?
     What is your Upgrade Policy?
     What is a "1-Year Free update"?
     If I purchased a single-user license, can I use the program on another computer?
     Can I get technical support for my Free Trial?
     What does download protection service mean?
     Can I try your products before I buy them?
     Is my purchase on your Website secure?
     Where can I find a safe discount program for your products?
     After I submit a ticket, how long before Support replies to me?
     Can I get your products on CD?


     How do I get an invoice or receipt?
     How to change license email if there is typo when I place the order?
     Can I cancel my order after placing it?
     If I buy the wrong product by mistake, can I exchange it?
     How will you tell me if my order was processed?
     Why I haven't received the refund yet?
     Do you charge VAT on my purchase?
     How do I get a refund of taxes paid?
     How do I pay for my purchase with my credit card or bank card?
     Why was the website price and what I paid different?
     How do I fix a "double charge"?
     What ways can I pay for my purchase?
     How to get a refund of Download Protection Service separately?

Reference:

System Requirements:

OS:Compatible with XP, Vista, Win7, Win8, Win10
RAM: 1024MB or greater, executable program takes 27Mb, loaded with a drawing file will take more RAM depends on the size of drawing file.
HD: 40MB free hard drive spaces to install

Technical Support:

Free technical support is available to all customers, any question please contact: info@autodwg.com.

Update:

You’ll enjoy one year free update service since you buy the software. After expiry, you can continue using the software but no more updates will be available unless you purchase.
